Fabricante y exportador Flanges de Acoplamento / Coupling Flange / Bridas de Acople Proveedor
Ameridrivetrain Group es el profesional Componentes de Cardan fabricantes y exportadores- ¡compre componentes de Cardan de repuesto de alta calidad, eje de transmisión de la fábrica del proveedor de China directamente!
Nuestro Horquilla de Tubo más popular como se muestra a continuación, si le interesa, por favor contáctenos, nos gustaría cooperar con distribuidores, ventas al por mayor, etc.
Teléfono: +86 18901736375
what‘sApp / Wechat: +86 18901736375
Correo electrónico: sales@ameridrivetrain.com

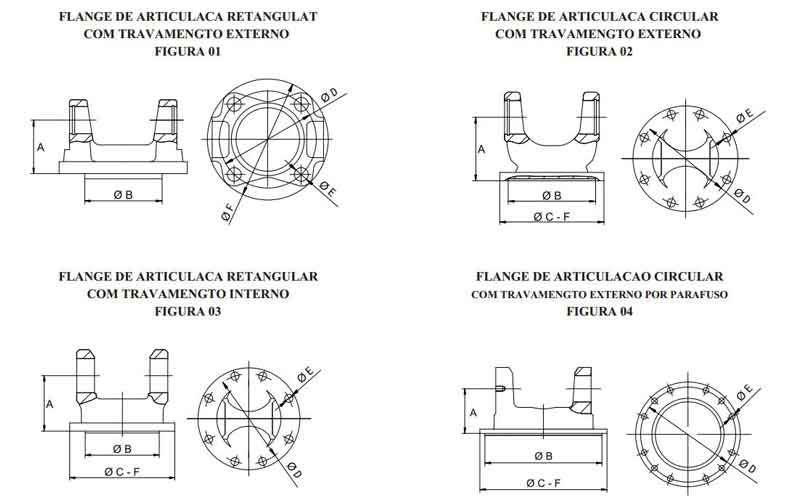

| Numero | Figura | Encaixe de Cruzeta | Altura "A" | Piloto "B" | Dia.Flange "C" | Dia.Furacao "D" | Dia.Furo "E" | Dia.Giro "F" | ||||
| AMERIDRIVETRAIN | SIMILAR | ORIGINAL | Cruzeta | Diametro | Topo | |||||||
| AM6.5-2-329 | AT1057 | 6.5-2-329 | 4 | CR1008 | 49.2 | 191.8 | 86.0 | 196.8M | 203.2 | 184.2 | 12x7/16" | 203.2 |
| AM2-2-479 | AT1070 | 2-2-479 | 1 | CR1001 | 27.0 | 81.7 | 36.0 | 69.6M | - | 95.5 | 4x7/16" | 116.0 |
| AM4-2-669 | AT1071 | 4-2-669 | 1 | CR1006 | 34.9 | 126.1 | 49.0 | 95.3M | - | 120.6 | 4x1/2" | 151.0 |
| AM3-2-479 | AT1072 | 3-2-479 | 1 | CR1005 | 34.9 | 106.2 | 51.0 | 95.3M | - | 120.6 | 4x1/2" | 151.0 |
| AM2-2-489 | AT1073 | 2-2-489 | 1 | CR1003 | 27.0 | 92.0 | 39.0 | 69.9M | - | 69.9 | 4x7/16" | 116.0 |
| AM3-2-159 | AT1077 | 3-2-159 | 1 | CR1004 | 30.1 | 106.2 | 43.0 | 69.9M | - | 95.2 | 4x1/2" | 116.0 |
| AM2-2-879 | AT1210 | 2-2-879 | 1 | CR1018 | 27.0 | 61.9 | 30.5 | 57.0M | - | 69.9 | 4xM8 | 89.0 |
| AM02-251 | AT1349 | 02-251 | 3 | CR1301 | 38.0 | 57.0 | 55.0 | 82.5M | 120.0 | 101.6 | 6xM10 | 120.0 |
| AM3-2-1139 | AT1350 | 3-2-1139 | 3 | CR1301 | 38.0 | 57.0 | 61.0 | 82.5M | 130.0 | 112.0 | 8xM10 | 130.0 |
| AM1351 | AT1351 | - | 3 | CR1301 | 38.0 | 57.0 | 71.0 | 82.5M | 130.0 | 112.0 | 8xM10 | 130.0 |
| AM02-334 | AT1352 | 02-334 | 2 | CR1302 | 45.0 | 120.3 | 72.0 | 90.0F | 150.0 | 130.0 | 8xM12 | 150.0 |
| AM1353 | AT1353 | - | 2 | CR1304 | 48.0 | 125.6 | 90.0 | 90.0F | 150.0 | 130.0 | 8xM12 | 150.0 |
| AM1560 | AT1560 | - | 1 | CR1501 | 30.1 | 92.0 | 45.0 | 70.0M | - | 95.0 | 4xM10 | 121.0 |
| AM1561 | AT1561 | - | 1 | CR1501 | 30.1 | 92.0 | 43.0 | 46.0M | - | 91.0 | 4x11.5 | 116.0 |
| AM2-2-919 | AT1950 | 2-2-919 | 1 | CR1001 | 27.0 | 81.7 | 35.0 | 46.0M | - | 91.0 | 4x7/16" | 110.0 |
| AM3-2-559 | AT1951 | 3-2-559 | 1 | CR1004 | 30.1 | 106.2 | 41.5 | 95.2M | - | 120.6 | 4x1/2" | 151.0 |
| AM2-2-1679 | AT1953 | 2-2-1679 | 1 | CR1001 | 27.0 | 81.7 | 41.0 | 46.0M | - | 85.0 | 4xM10 | 104.0 |
| AM2-2-459 | AT1955 | 2-2-459 | 1 | CR1001 | 27.0 | 81.7 | 39.5 | 60.4M | - | 79.0 | 4x3/8" | 101.0 |
| AM1956 | AT1956 | - | 1 | CR1003 | 27.0 | 92.0 | 43.0 | 46.0M | - | 93.5 | 4x7/16" | 116.0 |
| AM3-2-119 | AT1958 | 3-2-119 | 1 | CR1501 | 30.1 | 92.0 | 44.5 | 69.9M | - | 95.3 | 4x1/16" | 116.0 |
| AM1959 | AT1959 | - | 1 | CR1001 | 27.0 | 81.7 | 34.5 | 46.0M | - | 93.5 | 4x7/16" | 116.0 |
| AM1961 | AT1961 | - | 1 | CR1004 | 30.1 | 106.2 | 41.5 | 95.2F | - | 130.0 | 4x13.0 | 160.0 |
| AM02-338 | AT1963 | 02-338 | 2 | CR1301 | 38.0 | 57.0 | 60.0 | 75.0F | 120.0 | 101.5 | 8xM10 | 120.0 |
| AM1965 | AT1965 | - | 1 | CR1501 | 30.1 | 92.0 | 43.0 | 69.9M | - | 95.0 | 4x12.0 | 120.0 |
| AM3-2-1159 | AT1966 | 3-2-1159 | 2 | CR1004 | 30.1 | 106.2 | 64.5 | 75.0F | 120.0 | 101.5 | 8xM10 | 120.0 |
| AM2-2-329 | AT1967 | 2-2-329 | 1 | CR1001 | 27.0 | 81.7 | 35.0 | 60.4M | - | 79.4 | 4x3/8" | 97.0 |
| AM6-2-749 | AT1968 | 6-2-749 | 4 | CR1015 | 49.2 | 154.7 | 74.0 | 196.8M | 203.2 | 184.2 | 8x3/8" | 203.2 |
| AM3-2-1239 | AT1969 | 3-2-1239 | 2 | CR1004 | 30.1 | 106.2 | 64.0 | 57.0F | 100.0 | 84.0 | 6xM8 | 100.0 |
| AM2-2-1339 | AT1970 | 2-2-1339 | 2 | CR1001 | 27.0 | 81.7 | 50.0 | 57.0F | 100.0 | 84.0 | 6xM8 | 100.0 |
Proveedor de componentes de cardán de China, fabricante y exportador de cardán, compre cardán de calidad directamente en la fábrica de China.
1 AÑO DE CALIDAD GARANTIZADA
