| Details: | |||
| Material: | 20Cr/20CrMnTi | Model Number: | 5-281X |

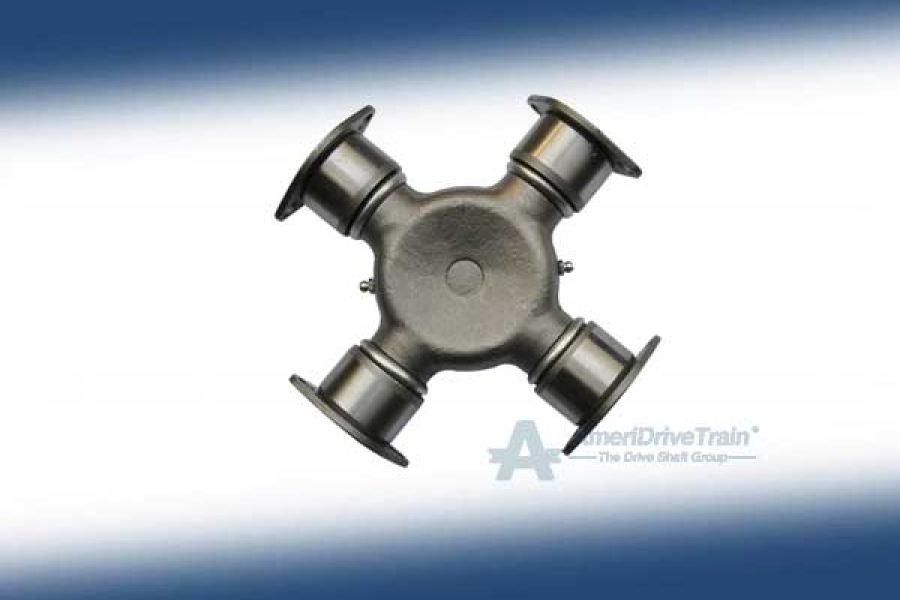

| Product Name: | American U Joint | Brand Name: | Ameridrivetrain |
| Circlip Thickness: | 2MM | Sizes: | 49.2X191.9MM |
| Market: | After Market/OEM | Packing Details: | Inner Bags+Outer Box & Carton + Wooden Pallet |
| Product Description: | |||
| Cross Shaft:20Cr/20CrMnTi | Bearing Cup:20Cr/20CrMnTi | ||
| Surface Hardness: HRC58-64 | Surface Hardness: HRC58-64 | ||
| Core Hardness: HRC33-48 | Cementite deepness:0.3-0.7mm | ||
| Cementite Deepness:0.8-1.3mm | Needle:GCr15 Surface Hardness: 58-64HRC | ||
| Dust Cover: NBR | Tolerance: D:0--0.015mm L:0--0.20mm | ||
| Grease:No.2 automobile grease | Circlips:65Mn Hardness:48-53HRC | ||
| CRUCETAS FOR U.S. VEHICLES | ||||||||
| CRUCETAS WITH 4 PLAIN ROUND BEARINGS AND 4 GROOVED ROUND BEARINS | ||||||||
| FIG | PART NO | D | O | L | SPICER | GMB | GKN | PRECISION |
| B | 5-100X | 25.4 | 38.5 | 5-100X | G5-100X | 514 | ||
| A | 5-101X | 23.82 | 61.3 | 5-101X | GU400 | HS150 | 340 | |
| B | 5-103X | 23.83 | 35 | 5-103X | G5-103X | HS410 | 338 | |
| A | 5-10X | 30.188 | 106.35 | 5-10X | GU2050 | HS179 | 330 | |
| A | 5-111X | 23.825 | 61.3 | 5-111X | HS194 | ANF | ||
| A | 5-113X | 27 | 81.78 | 5-113X | G5-113X | HS166 | 369 | |
| B | 5-1200X | 27 | 57.4 | 5-1200X | G5-1200X | 429 | ||
| B | 5-1201X | 27/28.6 | 55.5 | 5-1201X | G5-1201X | 430 | ||
| B | 5-1203X | 27 | 67.6 | 5-1203X | G5-1203X | 433 | ||
| A/B | 5-1204X | 27/28.6 | 67.6 | 92 | 5-1204X | 434 | ||
| A | 5-12062X | 48.05 | 161 | 5-12062X | HS268 | |||
| B | 5-1206X | 30.188 | 76.28 | 5-1206X | G5-1206X | 427 | ||
| A | 5-12072X | 57.05 | 162.9 | 5-12072X | ||||
| A | 5-12100X | 45 | 120.4 | 5-12100X | GU7530 | HS260 | ||
| A | 5-121X | 27 | 81.75 | 5-121X | G5-121X | |||
| B | 5-12213X | 38 | 57.2 | 5-12213X | GU7300 | |||
| A | 5-12219X | 48.05 | 125.8 | 5-12219X | GU7620 | HS272 | ||
| A | 5-12276X | 44.1 | 149 | 5-12276X | ||||
| A | 5-12278X | 50 | 164 | 5-12278X | ||||
| A | 5-12924X | 52 | 133 | 5-12924X | GU7560 | HS282 | ||
| A | 5-12932X | 57.07 | 152 | 5-12932X | GU7630 | HS289 | ||
| B | 5-1301X | 31.3 | 71.5 | 5-1301X | G5-1301X | 304 | ||
| B | 5-1306X | 27.4 | 50.9 | 5-1306X | G5-1306X | HS442 | 315G | |
| B | 5-1306X-1 | 27.4 | 50.8 | 5-1306X-1 | G5-1306X-1 | HS442 | 317 | |
| B | 5-1309X | 28.6 | 63.96 | 5-1309X | G5-1309X | 316 | ||
| A | 5-1312X | 28.6/28.58 | 91 | 60 | 5-1312X | 375 | ||
| B | 5-1312X | 28.6/28.58 | 91 | 60 | 5-1312X | 375 | ||
| A | 5-13400X | 23.825 | 61.3 | 5-111X | 341 | |||
| A | 5-134X | 27 | 92/81.7 | 5-134X | G5-134X | 353 | ||
| B | 5-1501X | 25.02 | 40 | 5-1501X | GUN27 | HS420 | 391 | |
| B | 5-1502X | 26 | 42 | 5-1502X | GUT13 | HS432 | 394 | |
| B | 5-1503X | 25.02 | 39.8 | 5-1503X | ||||
| B | 5-1505X | 28.02 | 52.9 | 5-1505X | GUN29 | HS448 | 393 | |
| B | 5-1506X | 38 | 57.2 | 5-1506X | GU7300 | HS480 | 463 | |
| B | 5-1508X | 26 | 53.6 | 5-1508X | GUT12 | HS436 | 390 | |
| A | 5-1509X | 28.52 | 77.7 | 5-1509X | GUT14 | HS172 | 396 | |
| B | 5-1510X | 29 | 49 | 5-1510X | GUT17 | HS454 | 387 | |
| B | 5-1511X | 32 | 61 | 5-1511X | GUT20 | HS470 | 389 | |
| B | 5-1514X | 22.52 | 34 | 5-1514X | 385 | |||
| A | 5-1516X | 25.02 | 76.44 | 5-1516X | GUM88 | HS153 | 399 | |
| A | 5-153X | 27 | 81.78 | 5-153X | GU1000 | HS166 | 369 | |
| A | 5-155X | 34.93 | 126.22 | 5-155X | G5-155X | HS275 | 358 | |
| A | 5-160X | 30.188 | 106.35 | 5-160X | GU2050 | HS179 | 330 | |
| A | 5-165X | 41.24 | 142 | 5-165X | G5-165X | HS252 | 359 | |
| B | 5-170X | 23.83 | 34.85 | 5-170X | G5-170X | HS410 | 338 | |
| A | 5-178X | 30.188 | 92.075 | 5-178X | GU2200 | HS182 | 331 | |
| A | 5-188X | 34.93 | 106.31 | 5-188X | GU2300 | HS263 | 351 | |
| A | 5-200X | 27 | 81.78 | 5-200X | G5-200X | HS166 | 329 | |
| A/B | 5-212X | 27.02/28.6 | 60.2 | 92 | 5-212X | G5-212X | 355 | |
| A | 5-213X | 27 | 92 | 5-213X | G5-213X | 354 | ||
| A/B | 5-248X | 25.39/27 | 38.6 | 62 | 5-248X | 361 | ||
| A | 5-251X | 27 | 81.75 | 5-251X | G5-251X | HS166 | 369 | |
| B | 5-2532X | 28.6 | 49 | 5-2532X | 513 | |||
| B | 5-260X | 27 | 52.5 | 5-260X | G5-260X | HS162 | 365 | |
| A | 5-263X | 34.93 | 106.31 | 5-263X | G5-263X | HS263 | 351 | |
| B | 5-273X | 27 | 67.6 | 5-273X | G5-273X | 433 | ||
| A | 5-275X | 34.93 | 126.22 | 5-275X | G5-275X | HS275 | 358 | |
| B | 5-297X | 30.2 | 52.5 | 5-297X | G5-297X | HS457 | 371 | |
| B | 5-297X-1 | 30.2 | 52.5 | 5-297X-1 | G5-297X-1 | HS457 | 377 | |
| B | 5-3011X | 28.6 | 59.9 | 5-3011X | HS453 | 492 | ||
| A/B | 5-3022X | 27/28.6 | 60.2 | 81.78 | 5-3022X | 372 | ||
| B | 5-3147X | 28.6 | 60.2 | 5-3147X | GU6370 | HS451 | 534G | |
| B | 5-350X | 27 | 56.8 | 5-350X | 366 | |||
| A/B | 5-353X | 27/27.4 | 50.8/56.8 | 5-353X | G5-353X | 319 | ||
| A | 5-431X | 33.3 | 67.48 | 5-431X | GGP-44R | 888 | ||
| A | 5-443X | 27.01 | 61.95 | 5-443X | G5-443X | HS197 | 437G | |
| A/B | 5-450X | 27.01/27 | 52.5 | 81.78 | 5-450X | 455 | ||
| A | 5-4X | 27.009 | 74.6 | 5-4X | GU1100 | HS195 | 344 | |
| A/B | 5-544X | 28.6/27 | 60 | 81.4 | 5-544X | 372 | ||
| B | 5-74X | 27 | 52.4 | 5-74X | G5-260X | HS441 | 356 | |
| B | 5-92X | 24.61 | 34.36 | 5-92X | GGPL-6R | HS416 | 861 | |
| A | SPL140-1X | 49.22 | 139 | |||||
| A | SPL170-1X | 55 | 165 | |||||
| A | SPL250-1X | 60 | 163 | |||||
| A | SPL70-1X | 34.9 | 126.1 | |||||
| A | SPL90-1X | 41.28 | 126 | |||||
| U-JOINT WITH 2 WELDER PLATE TYPE AND 2 HIGH WING BEARINGS | ||||||||
| FIG | PART NO. | D/CTOC | L1/L2 | GMB | PRECISION | ROCKW-ELL | GKN | BEARING QUANTITY AND TYPE |
| C | 5-324X | 49.195/71.4 | 191.98/209.3 | 5-324X | 480 | CP18N96 | HS794 | 2HWD 2RND |
| C | 5-326X | 55.55/71.4 | 206/209.3 | 3307 | . | . | HS798 | 2HWD 2RND |
| C | 5-353X | 27/27.4 | 50.8/81.8 | 5-353X | 319 | |||
| CRUCETAS WITH 2 WELDER PLATE TYPE AND 2 PLAIN ROUND BEARINGS | ||||||||
| FIG | PART NO | D | L1 | L2 | SPICER | PRECISION | NEAPCO | ROCKWELL |
| D | 5-438X | 47.618 | 135.005 | 135.005 | 5-438X | 475 | 4-2791 | CP16SI |
| D | 5-515X | 49.195 | 154.855 | 156.855 | 5-515X | 476 | 5-2801 | CP17SI |
| D | 5-469X | 49.195 | 177.98 | 179.98 | 5-469X | 477 | 6-4071 | CP176SI |
| D | 5-510X | 49.195 | 191.9 | 193.9 | 5-510X | 478 | 6-2811 | CP18SI |
| D | 5-674X | 47.618 | 135.6 | 135.6 | 5-674X | 475 | 4-2791 | CP16SI |
| D | 5-675X | 49.195 | 155.33 | 157.63 | 5-675X | 476 | 5-2801 | CP17SI |
| D | 5-676X | 49.195 | 192.38 | 194.68 | 5-676X | 478 | 6-2811 | CP18SI |
| D | 5-677X | 49.195 | 178.38 | 180.68 | 5-677X | 477 | 6-4071 | CP176SI |
| CRUCETAS WITH 4 WELDER PLATE TYPE ROUND BEARINGS | ||||||||
| FIG | PART NO | D | L | WX | PRECISION | GKN | ALLOY | ROCKWELL |
| E | 5-115X | 39.68 | 115.42 | 4225AF | 332 | HS308 | 1757 | CP115X |
| E | 5-279X | 47.618 | 135 | 5200AGF | 333 | HS336 | 1807 | CP16NS |
| E | 5-279X-1 | 47.618 | 135 | 5200AGF | 333 | HS336 | 1807 | CP16NS |
| E | 5-280X | 49.195 | 154.755 | 5278AGF | 334 | HS337 | 1802 | CP17NS |
| E | 5-280X-1 | 49.195 | 154.755 | 5278AGF | 334 | HS337 | 1802 | CP17NS |
| E | 5-407X | 49.195 | 177.93 | 6269AGF | 376 | HS338 | 1808 | CP176NS |
| E | 5-407X-1 | 49.195 | 177.93 | 6269AGF | 376 | HS338 | 1808 | CP176NS |
| E | 5-281X | 49.195 | 191.8 | 7225AGF | 381 | HS334 | 1810 | CP18NS |
| E | 5-281X-1 | 49.195 | 191.8 | 7225AGF | 381 | HS334 | 1810 | CP18NS |
| E | 5-124X | 59 | 167.5 | 6228AGF | 335 | HS324 | 1804 | CP124X |
| E | 5-308X | 55.5 | 206 | 388 | HS348 | |||
| CRUCETAS WITH 2 WING BEARINGS AND 2 GROOVED OR PLAIN ROUND BEARINGS | ||||||||
| FIG | PART NO | D/CtoC | L1/L2 | SPICER | PRECI SION | ROCK WELL | CATER PILLAR | WING&ROUND BEARING TYPE |
| F | 5-2031X | 25.4/33.34 | 55.2/79.22 | 5-2031X | 508 | CP2031 | 2LWD,2RND | |
| F | 5-2033X | 25.4/33.34 | 54.5/79 | 5-2033X | 522 | CP2033 | 6D2529 | 2LWD,2RND |
| F | 5-4016X | 28.5/36.5 | 77.9/108 | 5-4016X | 546 | CP4016X | 2LWD,2RND | |
| F | 5-345X | 30.18/36.5 | 106.29/107.9 | 5-345X | 2HWD,2RND | |||
| F | 5-154X | 33.35/42.85 | 84.023/114.96 | 2HWD,2RND | ||||
| F | W-6139 | 33.35/42.88 | 104.25/140.25 | 565 | 2HWD,2RND | |||
| F | 5-303X | 34.92/42.8 | 126.1/140.4 | 5-303X | 470 | 2HWD,2RND | ||
| F | R221 | 34.92/42.8 | 126/140.4 | 5-221X | 470 | 5Y0154 | 2HWD,2RND | |
| F | 5-330X | 41.2/49.2 | 142/148.2 | 5-330X | 2HWD,2RND | |||
| CRUCETAS WITH 4 WING BEARINGS-----CATERPILLAR | |||||
| SPICER | SIZE | CATERPILLAR | SPICER | SIZE | CATERPILLAR |
| 5-2002X | 33.34X79.37 | 1250 | 5-6108X | 42.88X140.45 | |
| 33.34X79.37 | 316117 | 49.22X148.4 | |||
| 5-2116X | 33.34X79.37 | 6S6902 | 5-6109X | 42.88X140.45 | |
| 5-3000X | 36.5X90.4 | 5D9153 | 49.22X148.4 | ||
| 5-3014X | 36.5X90.4 | 9K1976 | 42.88X140.45 | ||
| 36.5X90.4 | 49.22X148.4 | ||||
| 5-4002X | 36.5X108 | 6F7160 | 5-7000X | 49.22X148.4 | 8F7719 |
| 5-4143X | 36.5X108 | 6K0316 | 5-7105X | 49.22X148.4 | 2H0858 |
| 5-4123X | 36.5X108 | 6H1262 | 5-8200X | 49.22X206.31 | XX7146 |
| 5-4140X | 36.5X108 | 5M0800 | 5-8203X | 49.22X206.31 | |
| 5-5000X | 42.88X115.06 | 7J5251 | 5-8105X | 49.22X206.31 | 6H2579 |
| 5-5177X | 42.88X115.06 | 2K3631 | 5-8201X | 49.22X206.31 | |
| 5-5121X | 42.88X115.06 | 7J5245 | 5-8202X | 49.22X206.31 | |
| 5-5173X | 42.88X115.06 | 5-8500X | 71.4X165 | 7K0442 | |
| 49.22X130 | 5-8516X | 71.4X165 | 2V7153 | ||
| 5-5802X | 49.22X134.8 | 9C0398 | 71.4X165 | ||
| 5-6000X | 42.88X140.45 | 5-9000X | 71.4X209.51 | 9H9491 | |
| 5-6106X | 42.88X140.45 | 1S9670 | 5-9016X | 71.4X209.51 | 9V7710 |
| 5-6102X | 42.88X140.45 | 5-9002X | 71.4X209.51 | ||
